Stoelting Bro. Co.

Serial #: 268-377 Model #: 12M

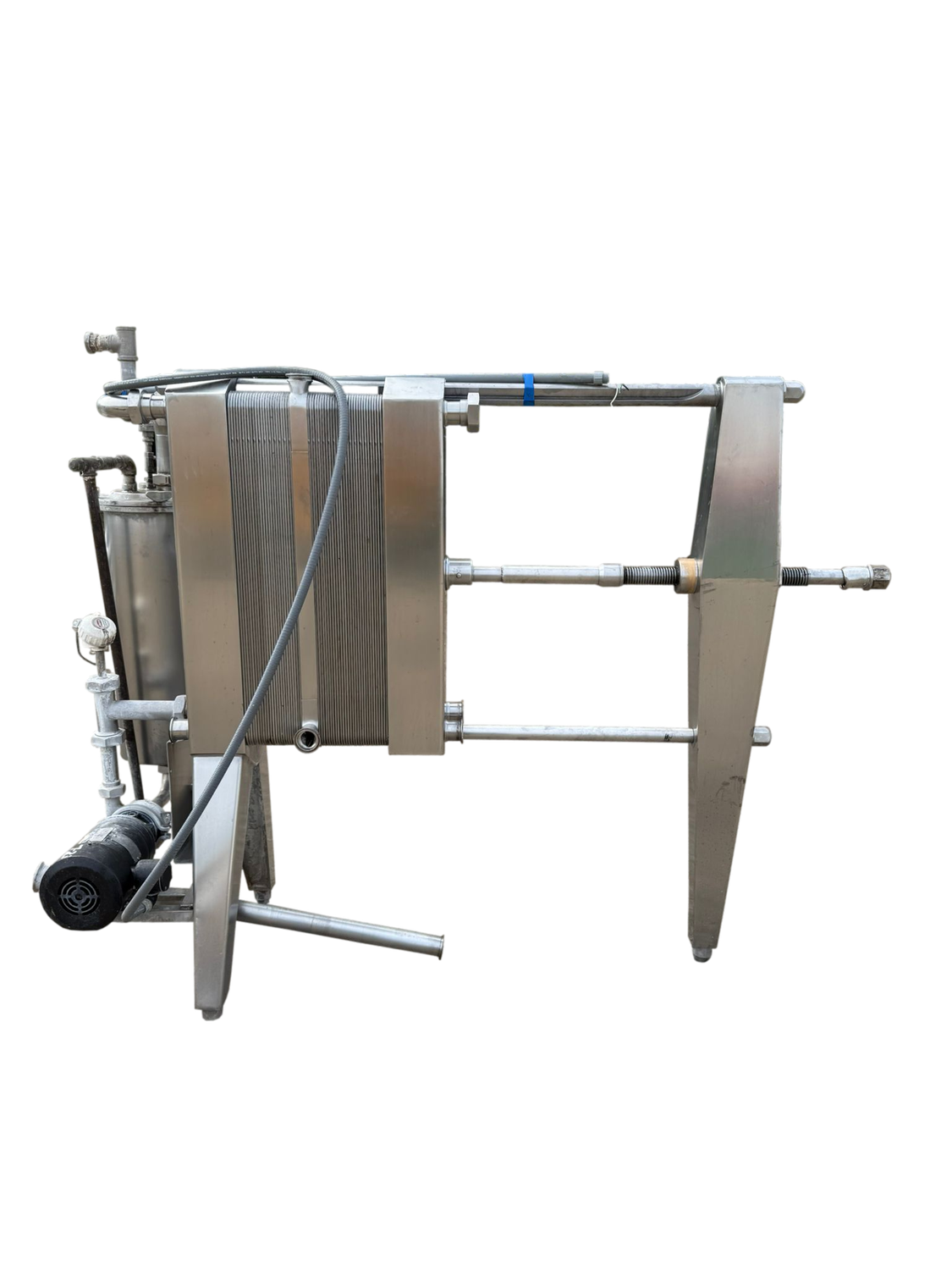

Heating / cooling plates and gaskets

Overall dimensions: 80½"L x 32"W x 63 5/8"H

- Stainless steel tank balance tank:

Tri-clover Pump Serial #: N2028 Model #: C114MD56T-S

Reliance Motor: 2 HP, 230/460 Volts, 3450 RPM, 3 Phase

- Shell and Tube:

Control panel, air space valves

2" Tri-clamp inlet and outlet

Overall dimensions: 117"L x 23"W x 72"H

- Pump on stand:

5 HP, 230/460 Volts, 3480 RPM, 3 Phase

2½" to 2" Inlet 1½" to 2" Outlet

Overall dimensions: 27½"L x 14½"W x 14"H

- Balance Tank: (connects to shell and tube) 29½" L x 25½"W x 31"H

- Control panel has chart recorder, manual, E-stop, on & off switch, temp gauge

- Pump on stand, baldor motor:

2HP, 230/460 Volts, 1140 RPM, 3 Phase

Rotary pump with 1½" to 2" inlet 1½" outlet

Model #: S-PRED25-11/2M-UC4-ST-S

Serial #: 57738J

Overall dimensions: 17½"L x 37½"Wx34"H

*All items unless otherwise specified only consist of the main product in question. Compressors, Valves, Motors, Agitators, etc. are not included unless specifically listed or discussed with sales.*
